Implementing Dynamic Content

This tutorial explores loading content dynamically into your Page Slider at runtime, allowing for greater control and adaptability.

1. Add the Page Slider

  1. Create a new Canvas GameObject.
  2. In the Project window, locate the PageSlider prefab within your project's folder structure: PageSlider/Prefabs/.
  3. Drag the PageSlider prefab from the Project window and make it a child of the Canvas in the Hierarchy.

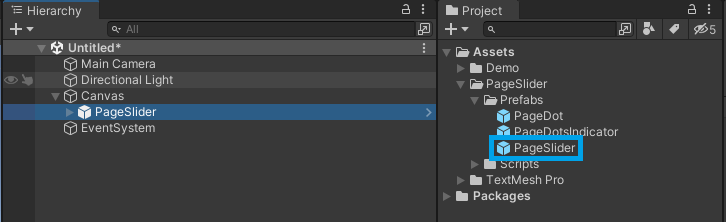

Drag a PageSlider prefab as a child of the Canvas

2. (Optional) Add Page Dots Indicator

  1. In the Project window, locate the PageDotsIndicator prefab within your project's folder structure: PageSlider/Prefabs/.
  2. Drag the PageDotsIndicator prefab and make it a child of the PageSlider in the Hierarchy.

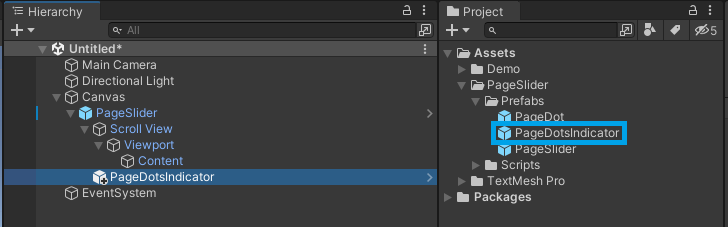

Drag a PageDotsIndicator as a child of the PageSlider

  1. Select the PageSlider GameObject.
  2. In the Inspector window, assign the PageDotsIndicator to the Dots Indicator field.

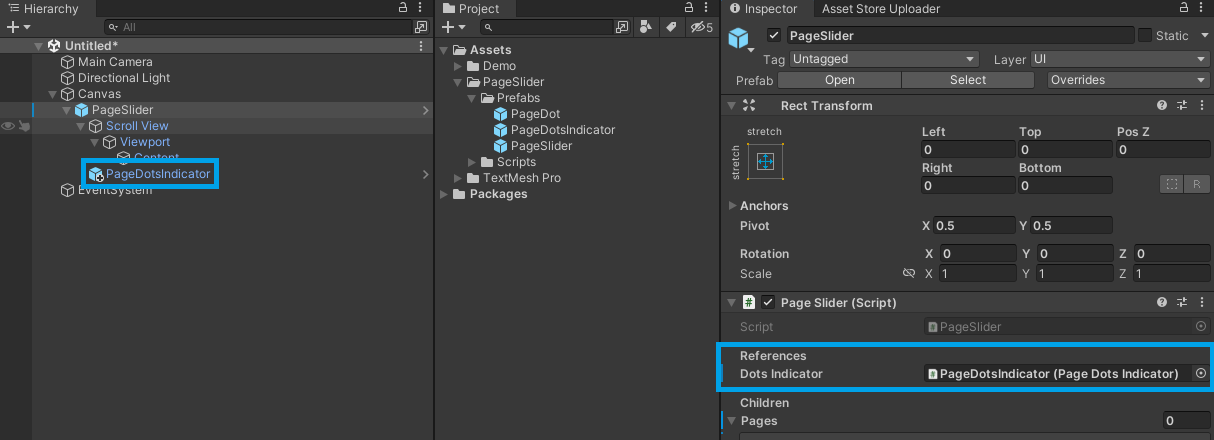

Assign the PageDotsIndicator to the PageSlider

3. Create a Page View

  1. Select the Canvas GameObject.
  2. In the Project window, locate the PageView prefab within your project's folder structure: PageSlider/Prefabs/.
  3. Drag the PageView prefab from the Project window and make it a child of the Canvas in the Hierarchy.

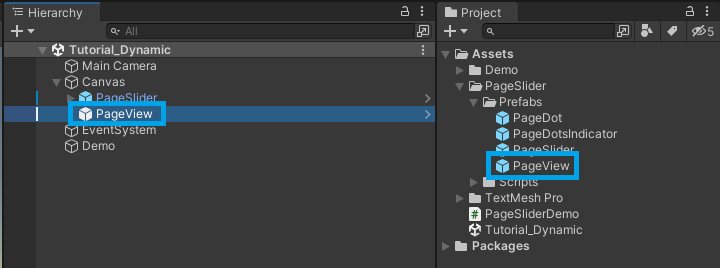

Create a page view

  1. Add your desired UI elements to configure the PageView layout. In this example, I'm adding a single Label, but the layout can be as complex as you need.

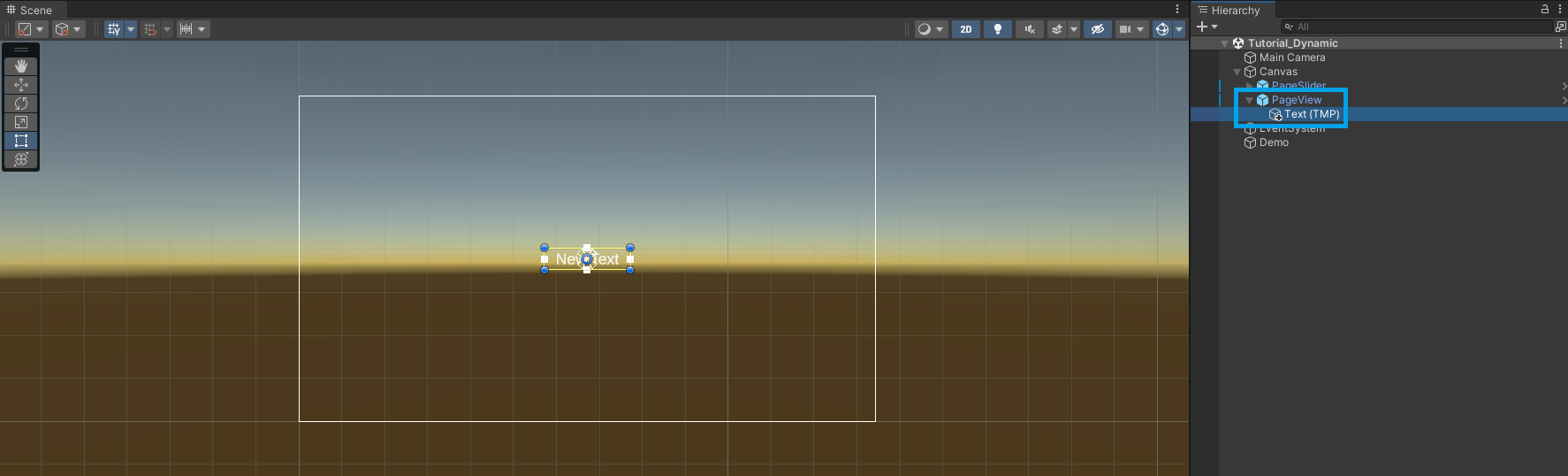

Add a page view layout

  1. Create a new prefab for the PageView layout. The Page Slider will instantiate this prefab at runtime to generate each page.
  2. Disable or remove the page layout from the Scene.

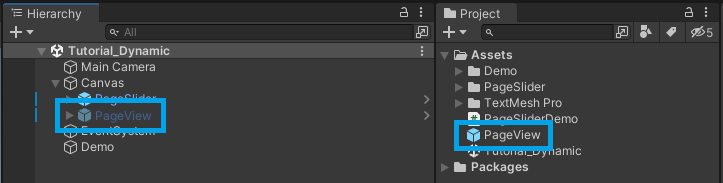

Create a new prefab for the page content view

4. Add Pages at runtime

  1. Create a new C# script (or use an existing one).

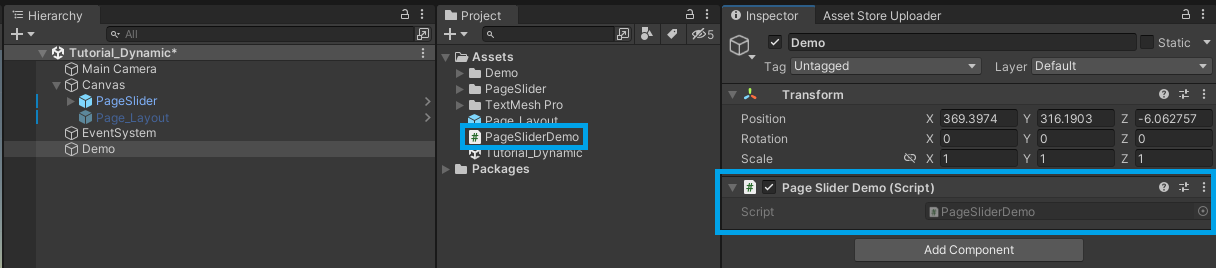

Create a new C# script

  1. Create a reference to the PageSlider and the PageView prefab.
  2. Instantiate the pages that you want and configure their properties.
  3. Add the pages to the PageSlider using the AddPage method. Please note it accepts a RectTransform component.
using TMPro;
using TS.PageSlider;
using UnityEngine;

public class PageSliderDemo : MonoBehaviour
{
    public PageSlider _pageSlider;
    public PageView _pageView;

    void Start()
    {
        for (int i = 0; i < 3; i++)
        {
            var page = Instantiate(_pageView);
            page.GetComponentInChildren<TextMeshProUGUI>().text = i.ToString();

            _pageSlider.AddPage((RectTransform)page.transform);
        }
    }
}
  1. Assign the PageSlider and the PageView prefab references.

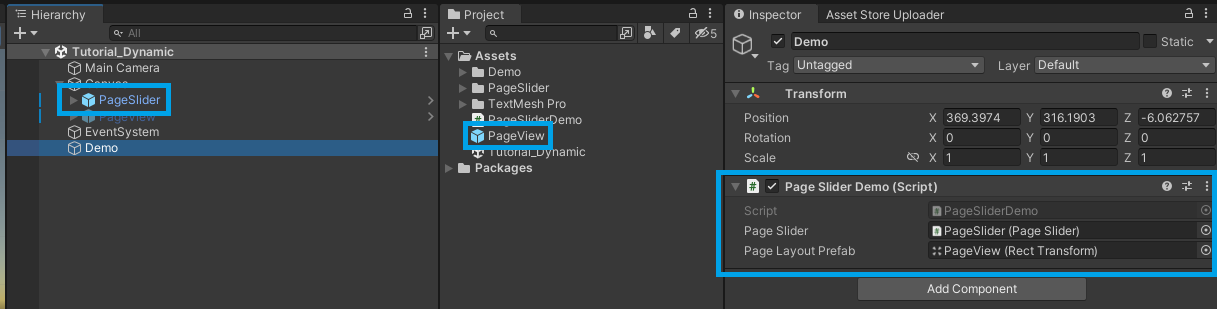

Assign the necessary references

  1. Run the project and the pages will be added dynamically to the PageSlider.

Note: For more complex cases you should create a custom class for the page layout. Check the Demo_Dynamic and Demo_Lazy available on the GitHub repository.
